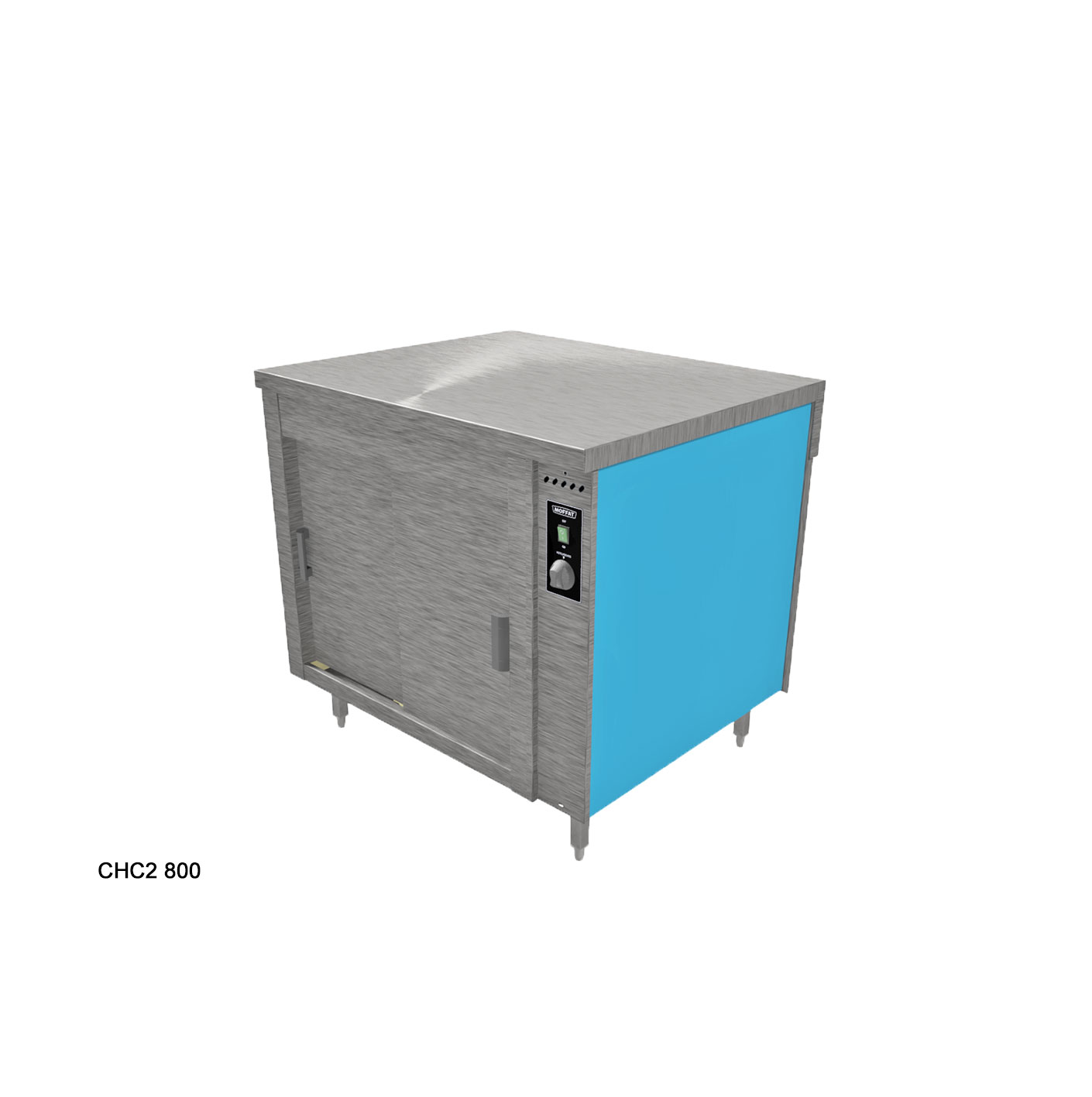

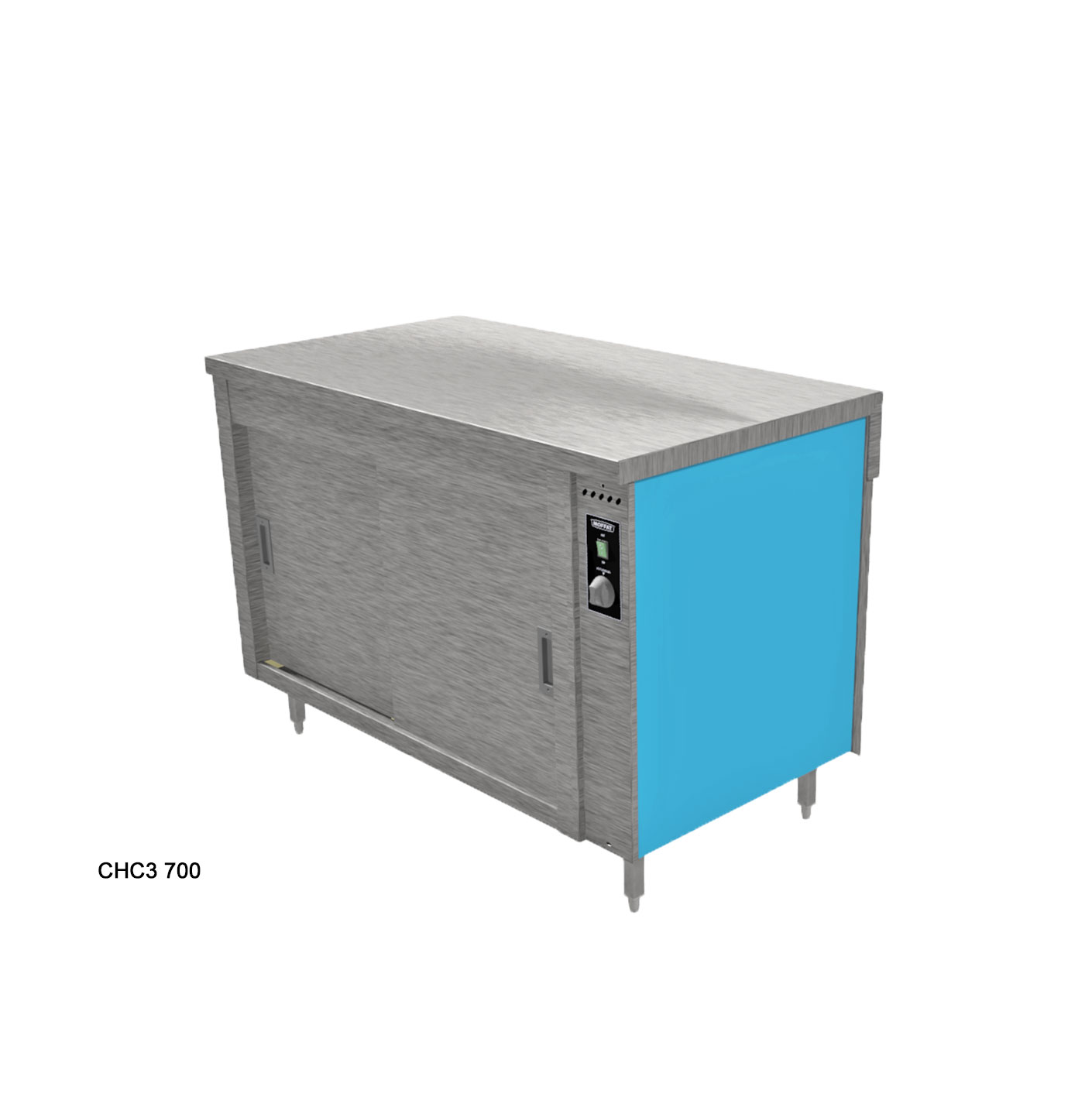

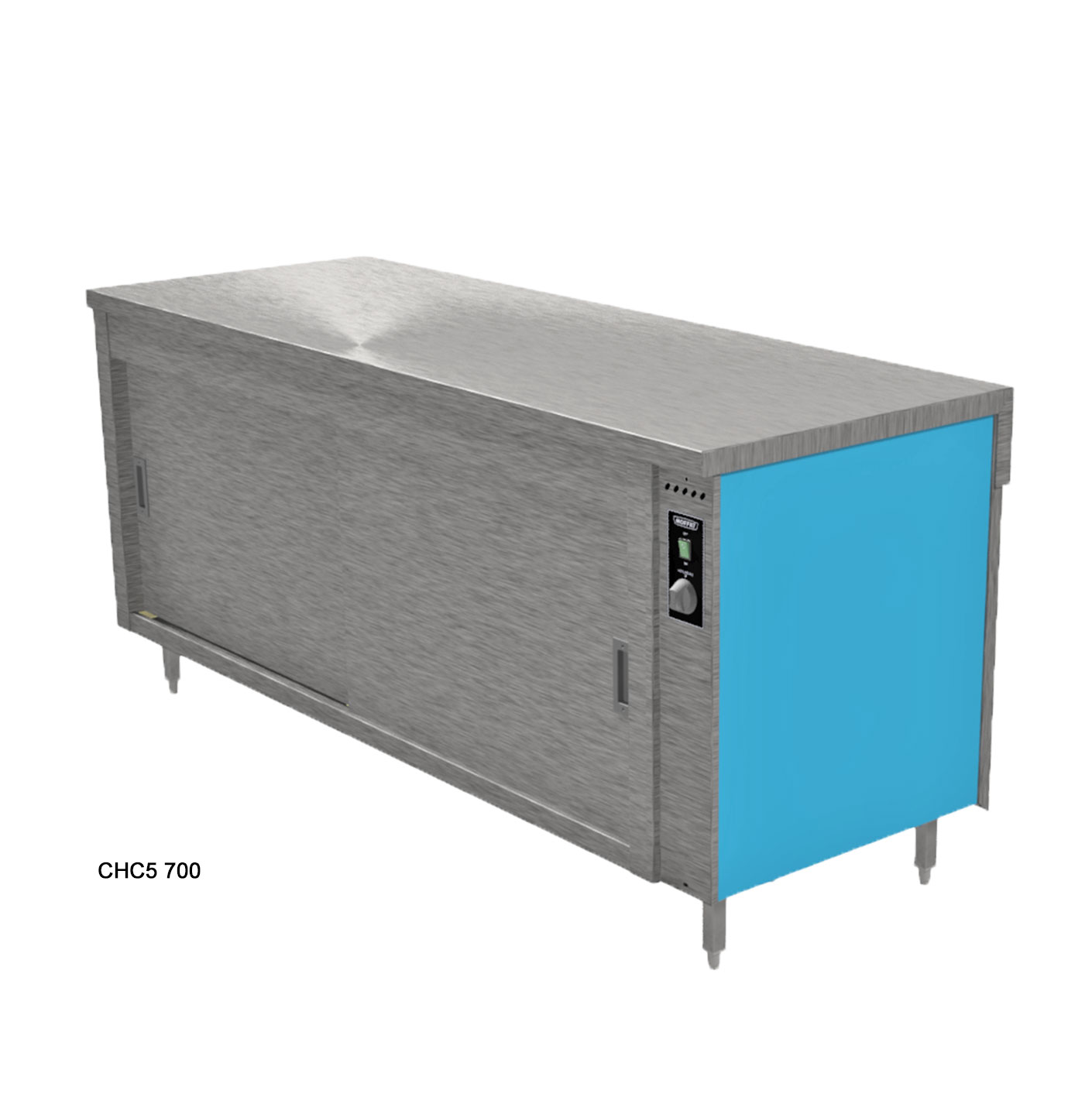

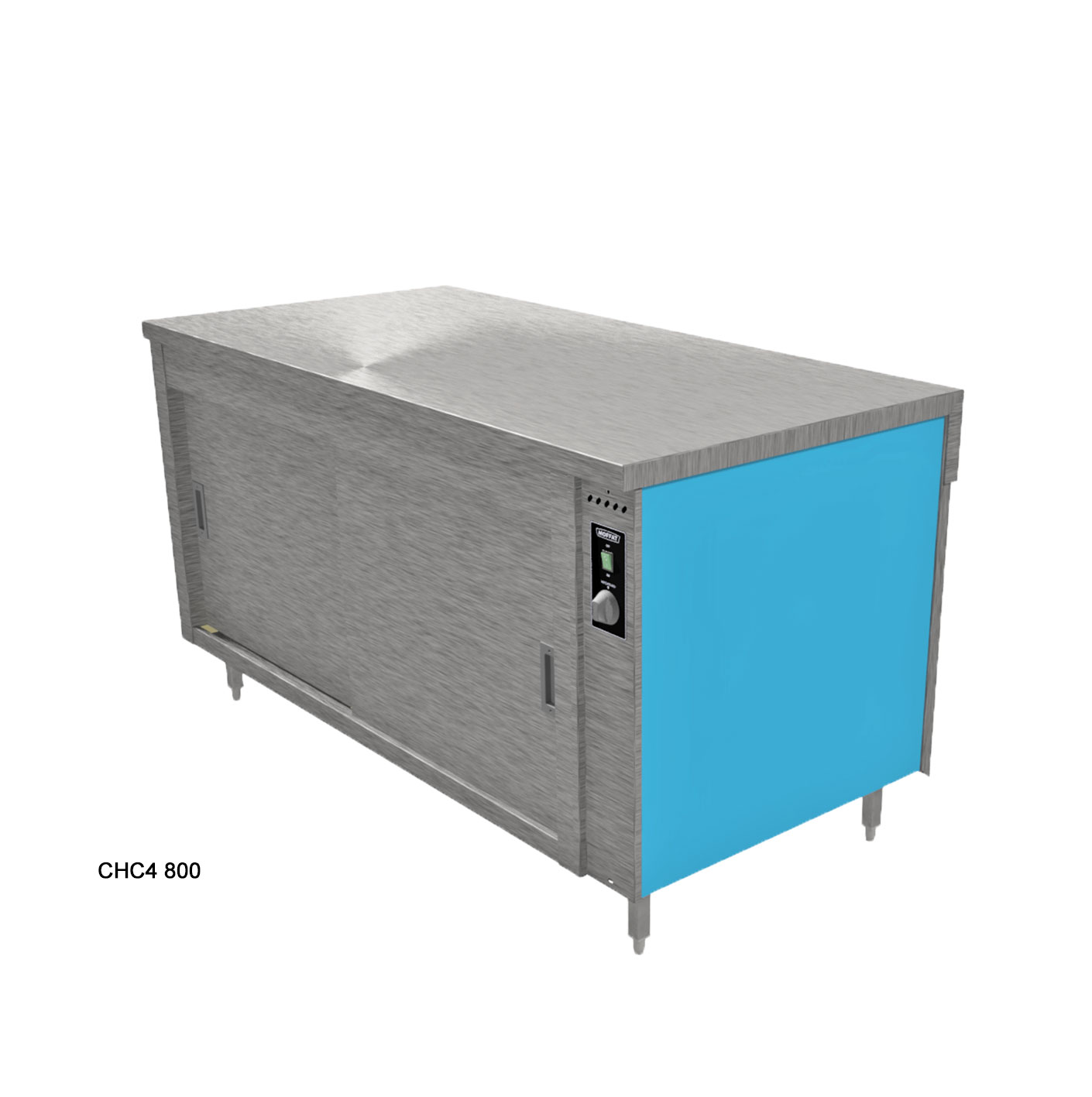

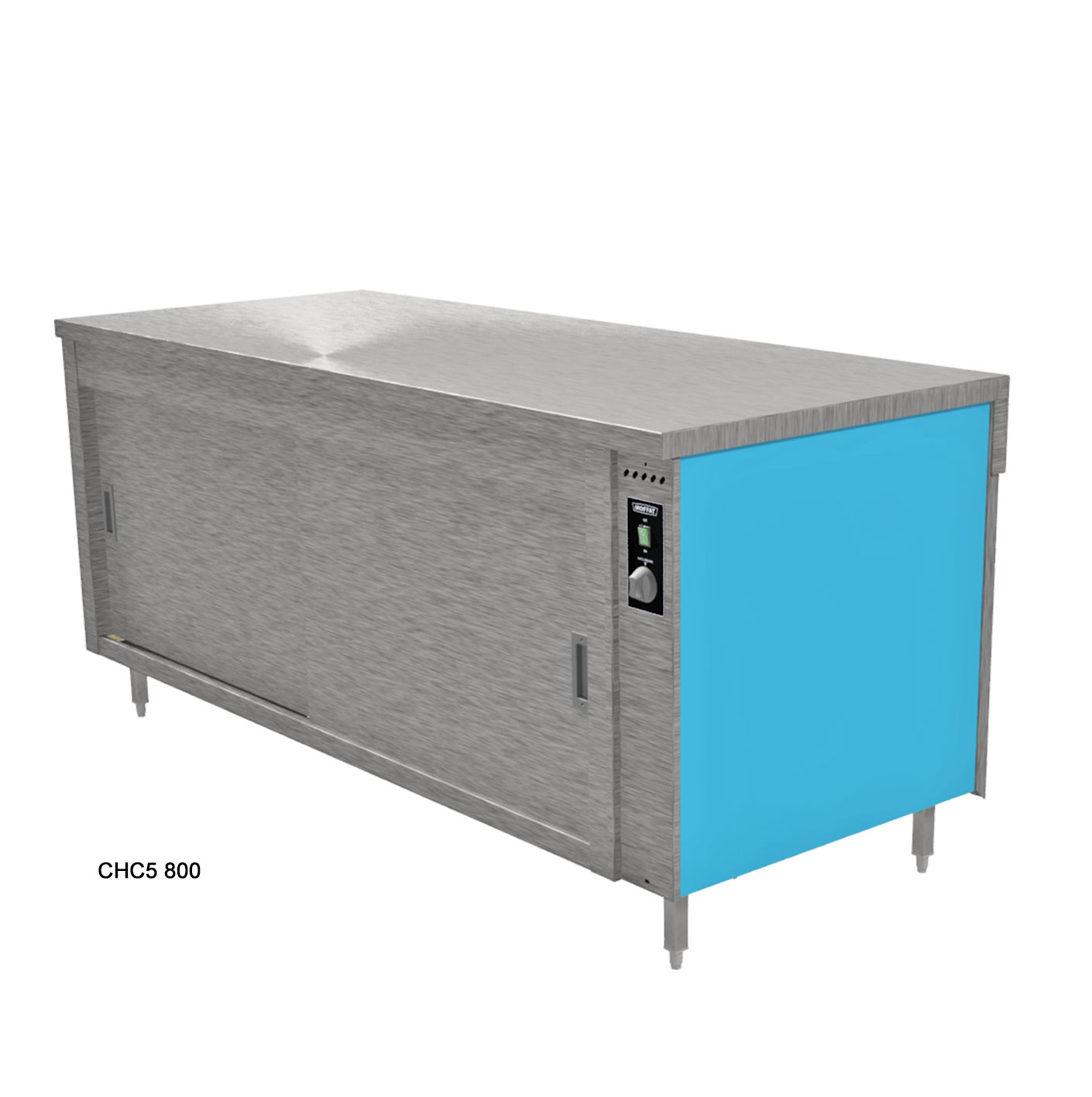

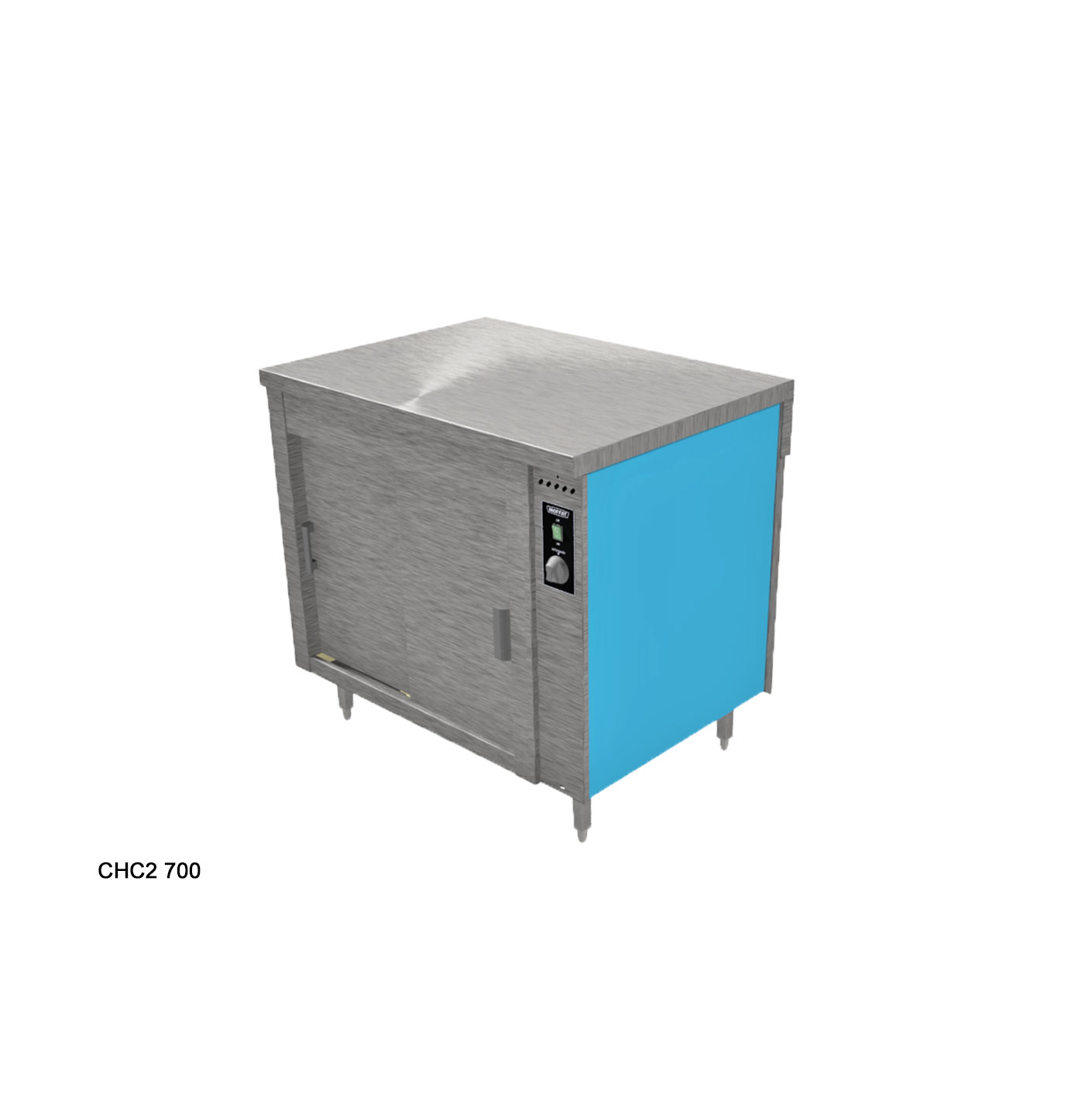

CHC2/3/4/5

Hot-cupboards with sliding doors. Based on Gastronorm GN1/1 pans available in four lengths. Compact high capacity units, hot food or plates and dishes can be held warm ready for service. Fully insulated robust stainless-steel construction with a solid plain top. A heavy-duty range aimed at the busy kitchen particularly suited to restaurants, Hotels, Conference centres, Universities, Schools, and Holiday centres. Excellent for pre-heating plates and dishes, as well as the temporary storage of precooked food e.g. Cooked meats, poultry, vegetables, sauces, etc. With an energy saving, fast heat up, recovery forced air heating and recirculation system, spreading the heat evenly throughout the cupboard.

Each model can be made part of a specially designed bespoke Moffat servery counter, with integrated Granite, Corian, or Stainless worktops

Note: The standard unit depth is 700mm, These models are also available at 800mm deep. Additionally when integrated into a bespoke counter, the worktop depth can be made to suit specific design parameters.

DOWNLOADS

Specification

Key features

Insulated for increased efficiency.
With hygiene in mind all stainless-steel construction, inner panels are bright polished.
Forced-air, convection, heated cupboard offers unparalleled flexibility of use.
Fan unit is easily removable for cleaning and maintenance.
Base and door track in one piece for easy cleaning.
Thermostatically controlled fan assisted hot cupboard. 30°-110°C.
Doors are very easily removed for cleaning, sliding doors have unique double life skid pads.
Doors can be fully rotated and reinserted allowing the spare skid pads to be used offering a long and trouble-free service.
Easy lift out GN 1/1 size multiple grid shelving, held by heavy-duty stainless-steel tube supports.
The recessed, slide-out, control panel is mounted to operator right hand side of cupboard.
Complete with a 2-meter-long cable and plug [most units work from a 13-amp supply

Operating Modes

Forced-air, convection, heated cupboard offers unparalleled flexibility of use.
Thermostatically controlled fan assisted hot cupboard. 30°-110°C.

Electrical Specifications

Rating with Gantry - 2.62 kW - 4.58 kW
Rating without Gantry - 2.4 kW - 3.7 kW
Electrical Supply - 13amp/16amp/32amp

Wiring Drawings

Wiring drawing can be obtained by contacting Sales

Options

Doors both sides Add DBS to Code
Door Locks
Various colours and styles of front and side panels are available, plastic coated steel, laminated wood type or Corian.
Various designs of overhead illuminates gantries are available, curved or square type glass, open or full front. Island, Deli, or traditional kitchen pass types can all be fitted.
Solid tray slide or tubular tray rails fixed or fold down types.
