Vgen

Vgen: V1C Healthcare

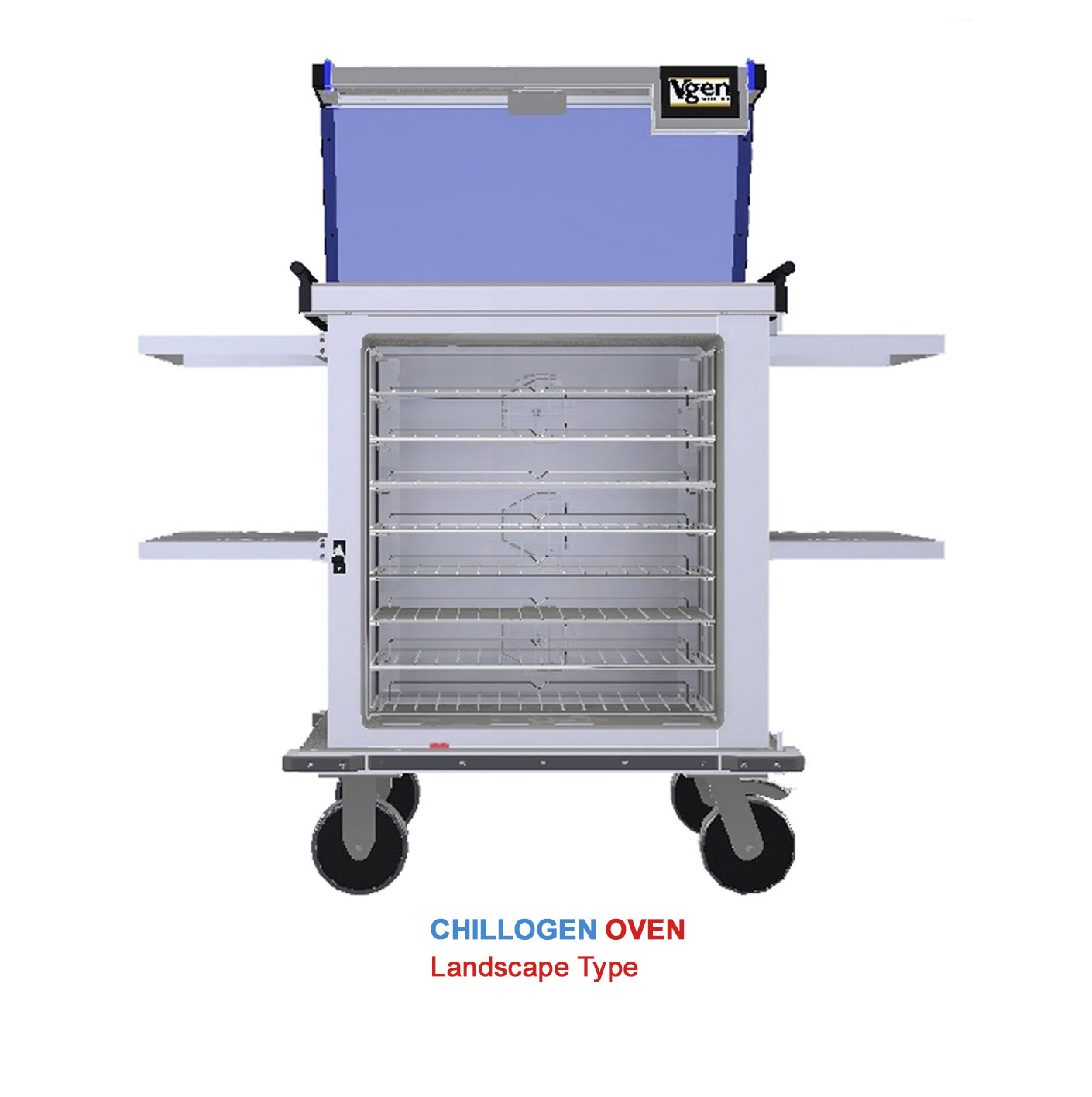

Designed specifically for the regeneration and serving of chilled bulk food. Using “Chillogen”, this VGen model allows refrigeration and regeneration in one holding space. First keep food chilled, then simply switch to regeneration manually/automatically without further handling of food. VGen then automatically holds food at the correct serving temperature until you are ready to serve.

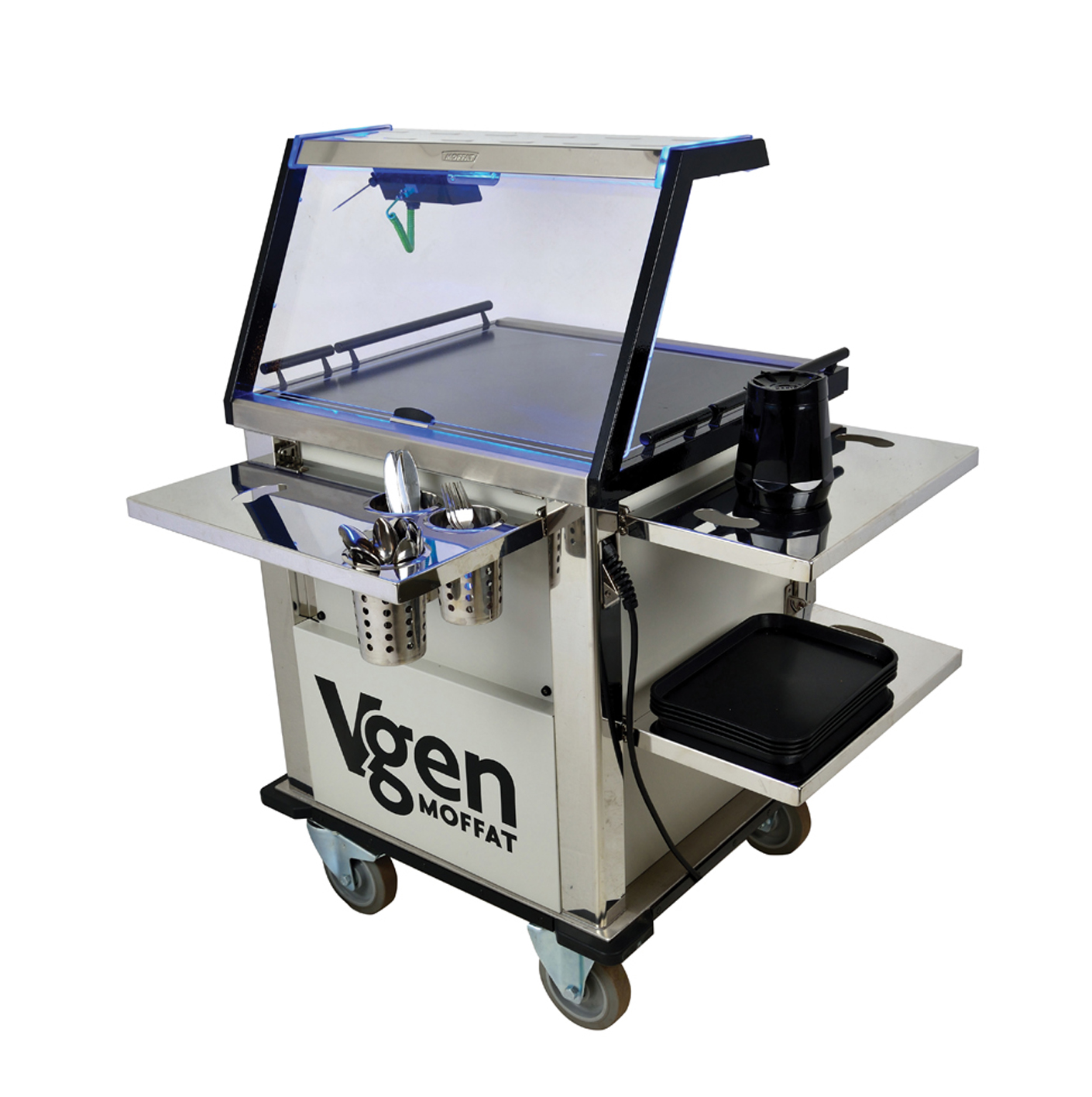

Featuring E & R Moffat’s pioneering, three-zone, multi-heat, control oven system. VGen enables total control of food temperature, texture and presentation. Complete with an accurately controlled, illuminated, self-regulating hot-top. All in one convenient unit.



DOWNLOADS

Specification

Key features

  • LED display lighting
  • Coloured LED operation indication (LEDs flash to signal warning when oven door is open)
  • 3 fully controllable oven zones in a landscape configuration
  • One-piece, neo-ceram, thermo-panel hot top
  • Steam evac & oven door air curtain
  • Touch screen, total control system with multi-function display & simplistic program choice
  • Each compartment supplied with removable shelf hangers
  • Wide choice of coloured front & end panels (standard colour is Goosewing Grey)
  • Oven with Moffat’s renowned, multi-fan, recirculating air system
  • Lift-up hob for easy servicing
  • Doors open out 270°
  • 4 x precision castors, 2 swivel with brakes & 2 fixed

Operating Modes

  • Keep Chilled - Holding chilled bulk food below 5°C, compartment controlled between 0°C & 5°C.
  • Cook Chilled - Regeneration of chilled bulk food [0°C to 8°C optimum 5°C] to above 82°C.
  • Keep Hot - Holding hot bulk food above 63°C, compartment controlled at 90°C Serve Hot.
  • Hot-top - serving area controlled at 90°C.









Electrical Specifications

  • Rating - 2.9 kW
  • Supply Voltage - 230V N~
  • Amps Per Phase - L1 - 13A

Wiring Drawings

  • Wiring drawing can be obtained by contacting Sales

Accessories

  • Fold-down end shelves or optional, recessed end shelf with flip-out waste bag holder
  • Fold-down front tray-slide with 3 apertures for cutlery holders
  • Gastronorm containers & additional grid shelves
  • Tow bar attachment & hitch
  • Cassette system in place of the standard shelf hangers with heat retention cover & dolly for transportation
