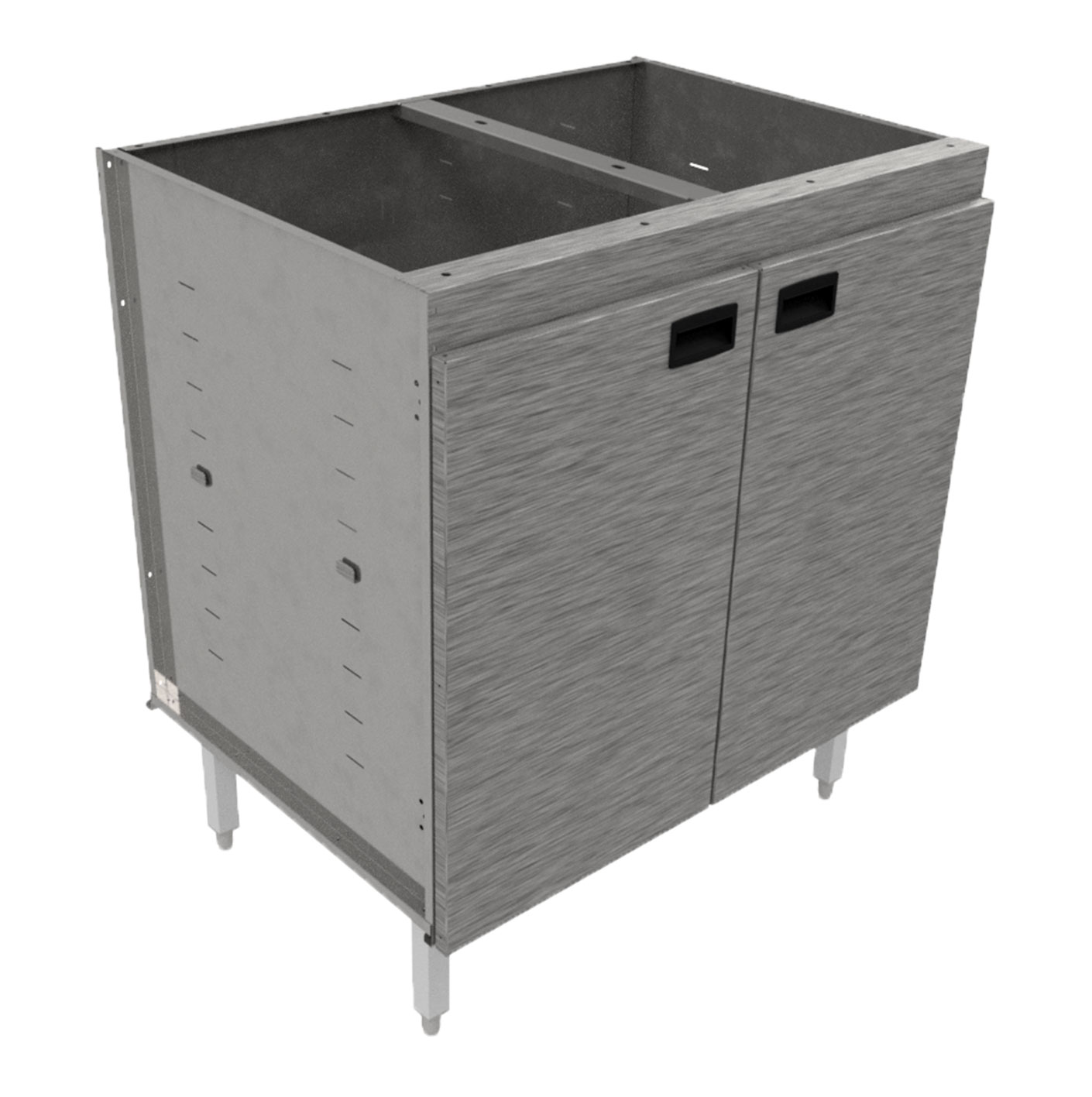

Base Cabinets: Cupboard
M2A2/L
A modular commercial kitchen storage system maximises the use of limited space. Stainless Steel cupboards with a strong and hard wearing design provide a hygienic surface for multi-purpose use. Perfect for kitchens with a small footprint. Floor standing stainless steel cupboards and drawer units with design features such as cut-outs to accommodate piping allowing easy installation.
The Multiplex range is based on modules of 400mm width and is designed around Gastronorm pans. The various units can be used individually or placed together to form a continuous preparation / storage layout of your choice. The robust stainless-steel construction feature adjustable for height feet and full length bottom kick trim. Cabinets doors are fitted with recessed handles and soft closing hinges. Each cabinet has one adjustable mid shelf fitted or six sets of adjustable runners to accept Gastronorm pans. Additional shelves are available at extra cost.
The worktops of the units are made special in one continuous piece (up to 2400mm in length). Multiple tops can be supplied ready to be joined using Moffat’s unique quick seal joining system. Drawer units have three or four fully extendible drawers, complete with lift out Gastronorm pans 100mm or 200mm deep.
DOWNLOADS
Specification
Key features
- Floor standing commercial stainless steel fully enclosed storage cupboards.
- Adjustable for height legs
- Hinged doors are soft closing and open to 100 degrees.Corner unit doors open 170 degrees
- Aesthetic black recessed door handles.
- Available in 400, 800mm 1050mm and 1200mm standard lengths.
- Adjustable height mid-Shelf.
- Full length kick trim
Operating Modes
- All stainless-steel construction.
- Available in 400, 800, 1200, standard lengths. Bespoke lenghts are available POA. The maximum length for a bespoke option is1200mm.
- Adjustable for height mid-shelves.
- Hinged doors are soft closing and open to 100 degrees with black aesthetic recess handles.
Corner unit hinges open 170 degrees .
Options
- Lockable doors [Two keys per lock]. Hinged or sliding door cupboard types. Add “L” to the model code. Example WC8SL :- 800mm long sliding door unit with door locks.
- Bespoke(Non standard lengths) Available on request.
- Single continuous one-piece work top and splash back. 475mm high sealing of the wall between the work top and wall cabinets.
- Additional cupboard shelves and shelf supports
